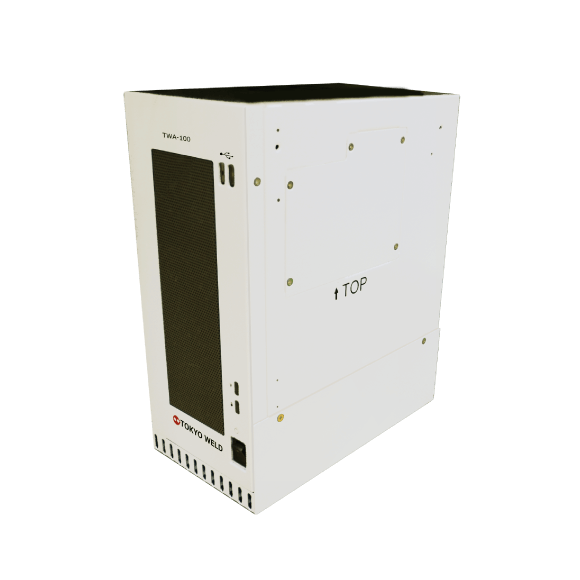

Optical inspection system
TWA-101E
This proprietary optical inspection system is mountable to a taping machine or an optical inspection machine, mainly for visually inspecting the exterior of electronic devices.
- - Easy use GUI
- - Uses a proprietary algorithm to identify defects that are usually difficult to detect.
- - Can be connected to various types of equipment.
Specifications
- Dimensions
- W140 D290 H250
- Power supply
- Single-phase 100/200 VAC,
50/60 Hz, 250 W
- Other specifications
- CPU: Core-i5 3.7 GHz 4-core
CF card: System: 12 GB, Data: 20 GB
Camera specification: PoCL Base/Medium/Full
Camera connection: 3CCD, 3 Mpix, 20 fps, max. 6 ch
Bus specification: PCI Express x8 Gen2
Bus transfer speed: 5 GB/s
