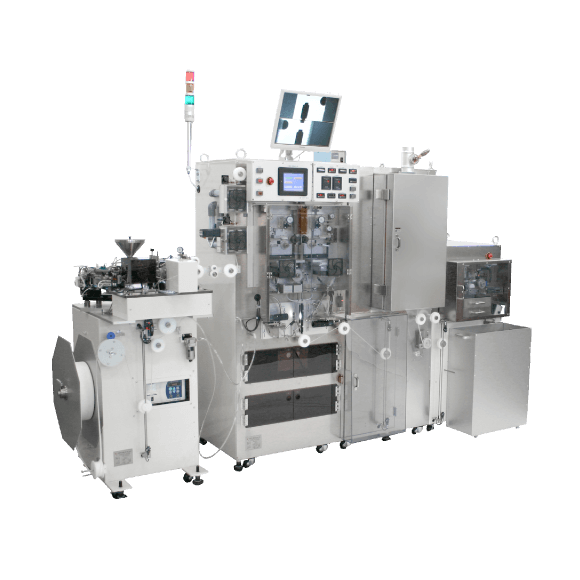

End-face terminal coating machine
TWA-1000AG
Machine that applies terminal coating to the end and side faces of electronic components with high coating precision and allows easy switching between different component types.
- - Simultaneously applies terminal coating to the end and side faces with high precision.
- - Easy switching between different component types.
- - Production capacity of 1,200/min.
Specifications
- Component dimensions
- 0403-3216
- Weight
- Approx. 750 kg
- Dimensions
- W3,050 D900 H2,000
- Processing capacity
- 1,200pcs/min
- Power supply
- Three-phase 200 VAC,
50/60 Hz, 14.0 kVA or less
- Vacuum air
- Built-in vacuum pump
- Compressed air
- 0.4–0.6 MPa, 100 L/min or less
- Other specifications
- Drying time: 4–10 min
Drying method: Hot-air blowing
