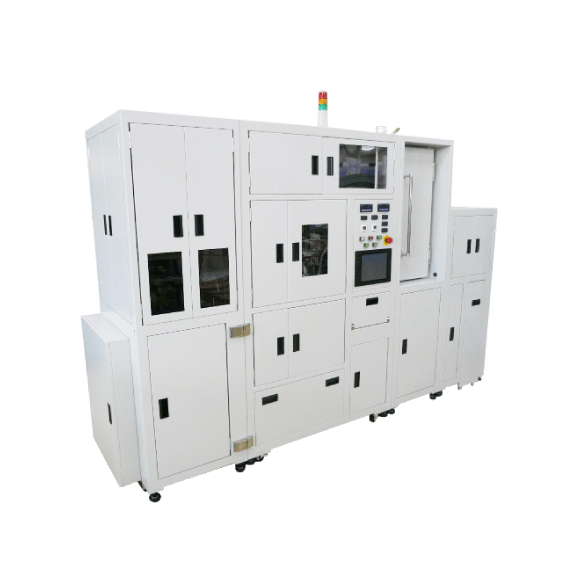

End-face terminal coating machine
TWA-1500AG
Our new standard-model terminal coating machine that offers higher takt, smaller size, and better spatial productivity than the previous model.
- - Achieves production capacity 1.5 times better the previous model.
- - Applies terminal coating to the end and side faces with high precision.
- - Easy switching between different component types.
Specifications
- Component dimensions
- 0403-3216
- Weight
- Approx. 500 kg
- Dimensions
- W2,819 D821 H1,830
- Processing capacity
- 1,800pcs/min
- Power supply
- Three-phase 200 VAC,
50/60 Hz, 5.0 kVA or less
- Vacuum air
- Built-in vacuum pump
- Compressed air
- 0.4–0.6 MPa, 50 L/min or less
