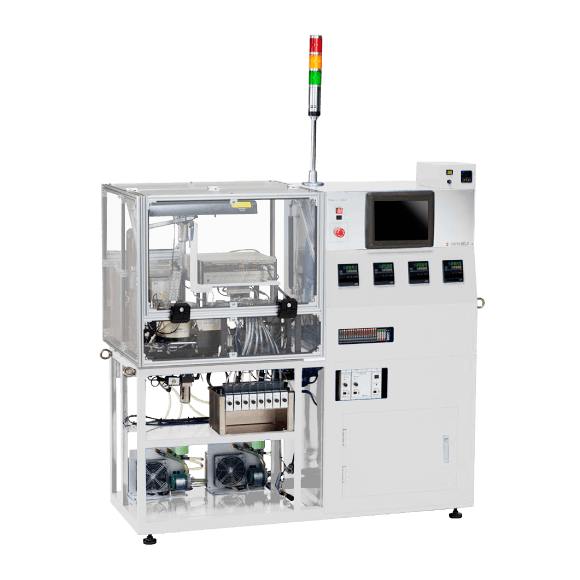

Thermistor measuring and sorting machine
TWA-1342
Electronic property inspection machine exclusively designed for thermistors. It is capable of performing high-precision measurement and sorting, even though testing is done in the air.
- - Measures electrical resistance in a temperature-controlled environment.
- - Classified into 5 levels
- - High production capacity of 1,000 pcs/min.
Specifications
- Component dimensions
- 0402-2012
- Weight
- Approx. 300 kg
- Dimensions
- W1,500 D700 H1,500
- Processing capacity
- 1,000pcs/min
- Power supply
- Single-phase 100/200 VAC,
50/60 Hz, 2.0 kVA or less
- Vacuum air
- Built-in vacuum pump
- Compressed air
- 0.5 MPa, 50 L/min or less
