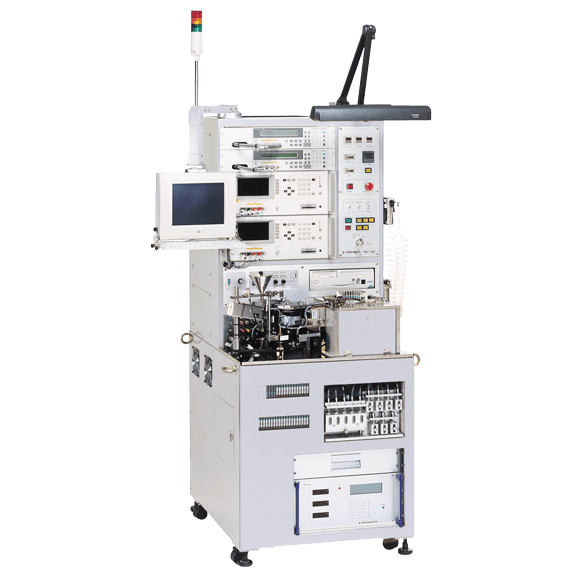

Measuring and sorting machine
TWA-1386
This is a measuring and sorting machine for chip ceramic capacitors, which uses our proprietary carriage method and is capable of high-precision measurement.
- - Capable of high-precision measurement.
- - Measures Cap/DF/VF/IR data and sorts conforming units from non-conforming units.
- - High production capacity of 1,000 pcs/min.
Specifications
- Component dimensions
- 0201-1005
- Weight
- Approx. 500 kg
- Dimensions
- W700 D865 H1,666
- Processing capacity
- 1,000pcs/min
- Power supply
- Single-phase 200 VAC,
50/60 Hz, 2.0 kVA or less
- Vacuum air
- Built-in vacuum pump
- Compressed air
- 0.5 MPa, 50 L/min or less
